small single shaft shredder china
Category：
Summary：
1. Adopting new design ideas and concepts, pursuing a design philosophy of high yield, low cost, convenient maintenance, safer and more user-friendly. 2. The body adopts a special steel welded structure, which is more sturdy and has strong tearing ability. The rotor adopts a V-shaped design, driven by a hard tooth reducer, with high torque and low speed.
Keywords：
Plastic recyling machine
Service:
small single shaft shredder china
Details
- Technical parameters
- Features
- Working Principle
- Mould display
- Details
- Application
-
- Commodity name: small single shaft shredder china
1. Adopting new design ideas and concepts, pursuing a design philosophy of high yield, low cost, convenient maintenance, safer and more user-friendly.</br> 2. The body adopts a special steel welded structure, which is more sturdy and has strong tearing ability. The rotor adopts a V-shaped design, driven by a hard tooth reducer, with high torque and low speed.
HDZ-F Series Single Shaft Shredder
HDZ-F series technical parameters

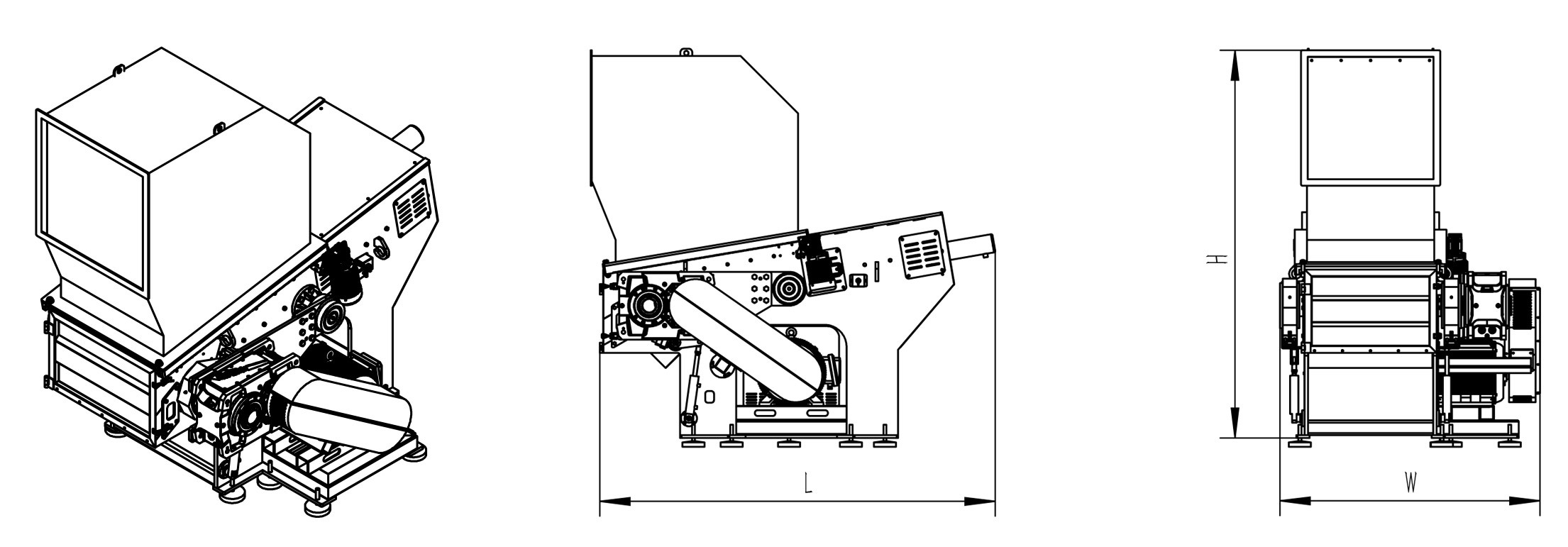

MODEL\SPEC HDZ-F600 HDZ-F800 HDZ-F1000 HDZ-F1200 HDZ-F1400 HDZ-F1600 HDZ-F1800 Rotor diameter(mm) φ300 φ400/450 φ450 φ450 φ450/520 φ580/630 φ580/630 Rotor width(mm) 600 820 1030 1230 1450 1650 1850 Main shaft speed(rpm) 73 73 73 73 73 73 73 Stator knives(pcs) 2 2 3 3 4 5 6 Rotor knives(pcs) 30/45 34/51 42/63 54/81/108 81/108/132 70/105/140 86/129/172 Motor power(kw) 22 37/45 55 75 90 75x2 90x2 Hydraulic power( kw) 5.5 5.5 5.5 5.5 7.5 7.5 7.5 Screen holes diameter(mm) >20 >20 >20 >20 >20 >20 >20 Machine dimensions(mm) 1780x1400x1900 2400x1800x2500 2800x2000x2800 3350x2350x3000 3350x2600x3000 3800x3400x3600 4100x3400*3600 Weight( kg) 2800 3700 5000 6800 8300 11000 14000 MODEL HDZ-F600 HDZ-F800 HDZ-F1000 HDZ-F1200 HDZ-F1400 HDZ-F1600 HDZ-F1800 L 1780 2400 2800 3350 3350 3800 4100 W 1400 1800 2000 2350 2600 3400 3400 H 1900 2500 2800 3000 3000 3600 3600
Single Shaft Shredder is a mechanical device specially designed for processing waste, discarded materials and recycled materials. It uses a single rotating shaft to shred various materials such as plastic, paper, wood, metal, etc., thereby breaking them into small pieces or filaments. This type of shredder is usually equipped with multiple sharp blades, which can efficiently shred waste materials and output uniform granular materials. Single Shaft Shredder is widely used in garbage treatment plants, renewable resource recycling plants, paper mills and other places. It can effectively reduce the volume of waste, reduce processing costs, and contribute to environmental protection. It also has the characteristics of simple structure, easy operation, and low noise, so it is favored by more and more enterprises and units.Introducing our Small Single Shaft Shredder, the perfect solution for efficient and compact material reduction. Designed specifically for smaller-scale operations, this versatile shredder excels in processing a wide range of materials, including plastics, paper, wood, and lightweight metals, making it an essential tool for recycling facilities, workshops, and small manufacturing units.
Featuring a robust single shaft design, this shredder utilizes a powerful rotating blade system that delivers consistent and thorough shredding results. The high-torque motor ensures smooth operation, allowing the machine to easily handle various materials without the risk of jamming. Its compact size makes it ideal for environments with limited space, while still providing impressive performance.
The Small Single Shaft Shredder is equipped with a user-friendly control panel that allows for easy operation and adjustment of settings to suit specific needs. Safety is a top priority, and the shredder comes with essential features such as emergency stop buttons and overload protection, ensuring a secure working environment.
Built for durability and efficiency, our Small Single Shaft Shredder provides excellent value and reliability, making it the ideal choice for businesses looking to enhance their waste management and recycling efforts. Invest in this powerful machine today and take a significant step towards sustainable practices!
-
Product Features
High yield
Low cost
Convenient maintenance
Safer
More use-friendly
1. Adopting new design ideas and concepts, pursuing a design philosophy of high yield, low cost, convenient maintenance, safer and more use-friendly.
2. The body adopts a special steel welded structure, which is more sturdy and has strong tearing ability. The rotor adopts a V-shaped design, driven by a hard tooth reducer, with high torque and low speed.Applied Materials
Suitable materials for processing include:
-
Working Principle
1. Feed Hopper:
Put the material to be crushed, so as to prevent the material from splashing out.
2. Single Shaft Cutting System:
Using different blades according customers' material.
3. Power System:
We choose famous brands of motor in china, can also be configured according tocustomer needs.
4. Discharging Conveyor System:
Lt adopts independent power system, and that power system isintegrally fixed on the shredder by bolts, so that the power system can be integrally drawn out.
-
Single Shaft Shredder Mould Display
1. Staggered knife:suitable for similar head material and other materials
2.Tight alignment with small Angle:for easily wound materials
3.Tight arrangement Angle:suitable for packing tape and other soft materials
-
Product Details
01 Reducer
The gearbox adopts a well-knownbrand gearbox and rubbershock absorption device, whichattenuates the vibration generat-ed during the tearing process,absorbs the impact, and ensuressmooth tearing, protecting thesafety of the gearbox and itspower system.
02 Screen
According to different needs, dif-ferent mesh sizes can be replaced.The replacement of the screenis driven by hydraulic pressure,which better solves the shortageof manpower and the safety haz-ards caused by the replacementof the screen.
03 Hydraulic Pressure
Adopting a dual oil cylinderbalanced pushing system with ad-justable speed hydraulic system,the pushing and returning speedcan be freely adjusted accordingto the nature of the material.Equipped with an air coolingdevice to ensure the oil tempera-ture of the hydraulic system andmeet the continuous working.
04 Rotor
The moving knife adopts aV-shaped arrangement, whichcan be used multiple times atdifferent angles, effectively ensur-ing the long-term stability of theknife roll. Adjustable fixed tool:By adjusting the gap betweenthe tools, the material dischargeeffect can be controlled.
-
Product Application
Pre
