quality heavy duty plastic crusher
Category：
Summary：
1. Adopting new design ideas and concepts, pursuing a design philosophy of high yield, low cost, convenient maintenance, safer and more user-friendly. 2. The body adopts a special steel welded structure, which is more sturdy and has strong tearing ability. The rotor adopts a V-shaped design, driven by a hard tooth reducer, with high torque and low speed.
Keywords：
Plastic recyling machine
Service:
quality heavy duty plastic crusher
Details
- Technical parameters
- Features
- Working Principle
- Mould display
- Details
- Application
-
- Commodity name: quality heavy duty plastic crusher
1. Adopting new design ideas and concepts, pursuing a design philosophy of high yield, low cost, convenient maintenance, safer and more user-friendly.</br> 2. The body adopts a special steel welded structure, which is more sturdy and has strong tearing ability. The rotor adopts a V-shaped design, driven by a hard tooth reducer, with high torque and low speed.
Heavy Duty Crusher
HFS series technical parameters

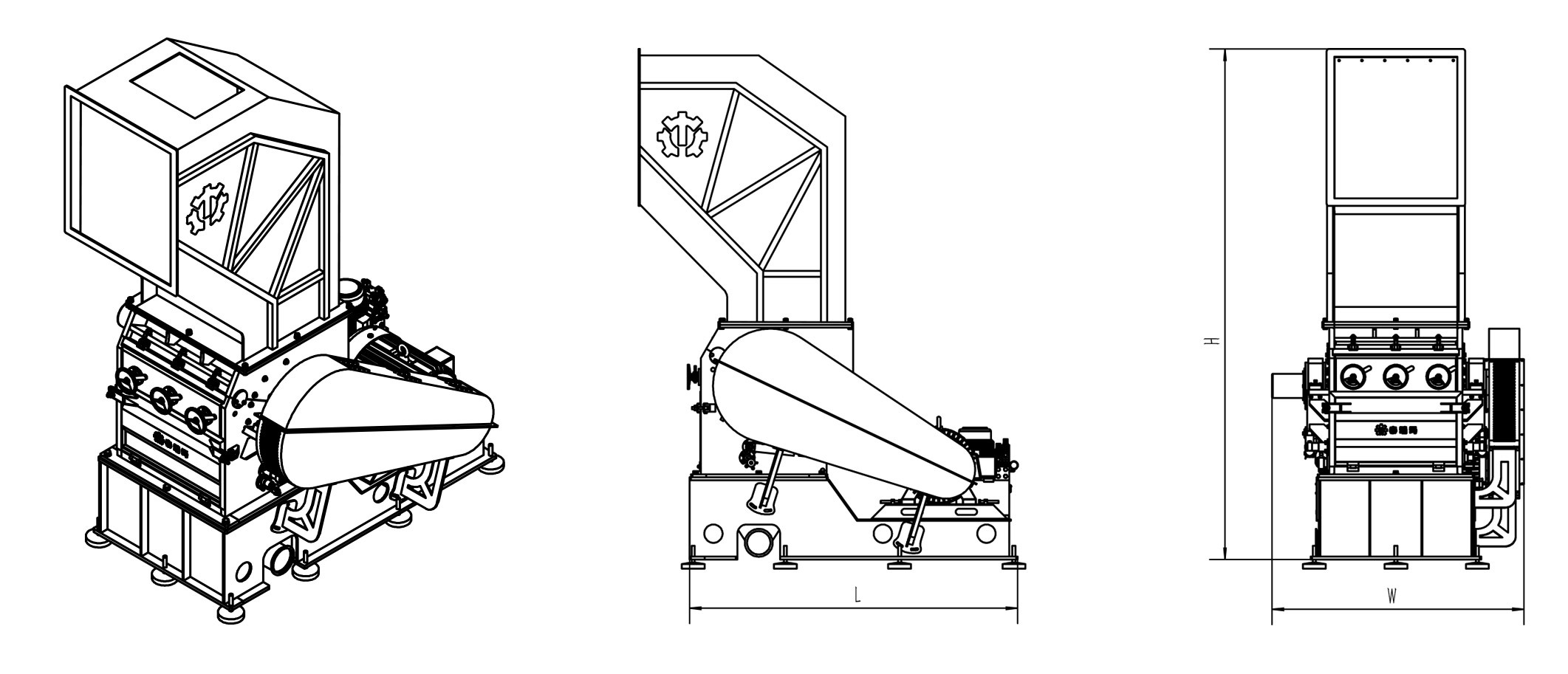

MODEL\SPEC HFS800/600 HFS1000/600 HFS1200/600 HFS1400/600 HFS1200/800 Rotor diameter(mm) φ600 φ600 φ600 φ600 φ800 Rotor width(mm) 800 1000 1200 1400 1200 Main shaft speed(rpm) 520 520 520 520 420 Stator knives(pcs) 2 2/3 2/3 2/3 2/3 Rotor knives(pcs) 3/5 5/7 5/7 5/7 5/7/9 Motor power(kw) 37/55 55/75 75/90 110/132 110/132 Hydraulic power( kw) 1.5 1.5 1.5 3 3 Feeding size(mm) 800x930 1000x930 1200x1000 1400x1000 1200*1100 Screen holes diameter(mm) >6 >6 >6 >10 >10 Machine dimensions(mm) 2200x1660x3420 2300x1860x3420 2300x2180x3520 2300x2400x3520 2300x2200x3720 Weight( kg) 3700 4300 5200 6500 8000 MODEL HFS800/600 HFS1000/600 HFS1200/600 HFS1400/600 HFS1200/800 L 2200 2300 2300 2300 2300 W 1660 1860 2180 2200 2400 H 3420 3420 3520 3520 3720 C 930 930 1000 1000 1100 D 800 1000 1200 1400 1200
Heavy Duty Crusher is a kind of equipment specially used for crushing large rocks or other hard materials. It has the characteristics of solid structure, strong durability and large processing capacity. Its main components include feed port, discharge port, rotor, hammer head and screen plate. The rotor drives the hammer head to rotate at high speed, hits and crushes the materials, and then screens them through the screen plate. The materials with the required particle size can be discharged from the discharge port. Heavy Duty Crusher is usually used in industries such as quarries, cement plants and construction sites. It is widely used to crush various hard materials such as granite, basalt, asphalt, etc. It can meet the user's needs for product particle size and production capacity, and is an ideal choice with reliable performance and high efficiency.The Heavy Duty Plastic Crusher is a powerful, industrial-grade machine designed to efficiently shred and recycle plastic materials. Built for high performance, this crusher is ideal for handling a variety of plastic waste, including bottles, containers, pipes, and film. Its robust construction and advanced technology ensure durability and reliability, making it an essential tool for recycling facilities, manufacturing plants, and plastic processing operations.
Equipped with a high-torque motor and sharp, hardened steel blades, the Heavy Duty Plastic Crusher can crush large volumes of plastic waste quickly and efficiently. The machine features a heavy-duty frame, designed to withstand continuous operation and extreme workloads, ensuring long service life and minimal downtime. With its large feed opening and powerful motor, it can easily process large plastic items, reducing them to smaller, manageable pieces for further recycling or disposal.
The crusher is designed with user safety and convenience in mind. Its easy-to-use control panel allows operators to adjust settings for different materials and processing speeds. Additionally, the machine is equipped with a safety mechanism to prevent overheating and overload, ensuring safe and efficient operation. The compact design of the crusher allows it to be installed in tight spaces without compromising on performance.
Perfect for businesses looking to reduce plastic waste and improve their sustainability efforts, the Heavy Duty Plastic Crusher is an essential investment for efficient plastic recycling and waste management. It provides an environmentally friendly solution while helping to lower operational costs and increase material recovery rates.
-
Product Features
High yield
Low cost
Convenient maintenance
Safer
More use-friendly
1. Adopting new design ideas and concepts, pursuing a design philosophy of high yield, low cost, convenient maintenance, safer and more use-friendly.
2. The body adopts a special steel welded structure, which is more sturdy and has strong tearing ability. The rotor adopts a V-shaped design, driven by a hard tooth reducer, with high torque and low speed.Applied Materials
Suitable materials for processing include:
-
Working Principle
1. Feed Hopper:
Put the material to be crushed, so as to prevent the material from splashing out
2. Heavy Duty Crusher Cutting System:
Using different blades according customers' material.
3. Power System:
We choose famous brands of motor in china, can also be configured according tocustomer needs.
4. Discharging Conveyor System:
Lt adopts independent power system, and that power system isintegrally fixed on the shredder by bolts, so that the power system can be integrally drawn out.
-
Heavy Duty Crusher Mould Display
1. Staggered knife:suitable for electronic film, softer material
2. Side-by-side knife:suitable for shredder material, secondary crushing
-
Product Details
01 Sieve Mesh
According to different needs, dif-ferent mesh sizes can be replaced.The replacement of the screen is driven by hydraulic pressure, which better solves the shortage of manpower and the safety haz-ards caused by the replacement of the screen.
02 Bearing Seat
Adopting a well-known brand high-strength bearing for external installation, separated from crushed materials, to prevent material from entering the bearing and damaging the bearing, effectively reducing damage to the box and protecting the rotor.
03 Hydraulic Station
Hydraulic opening and closing device: blade maintenance and screen replacement, driven by hy-draulic pressure, can quickly and conveniently open the box and screen frame.
04 Rotor
The knife V arrangement effective-ly forms two-way shear, so that the material is concentrated in the middle, it is very good to avoid the accumulation of materials on both sides, and effectively reduce the wear on both sides of the box.
-
Product Application
